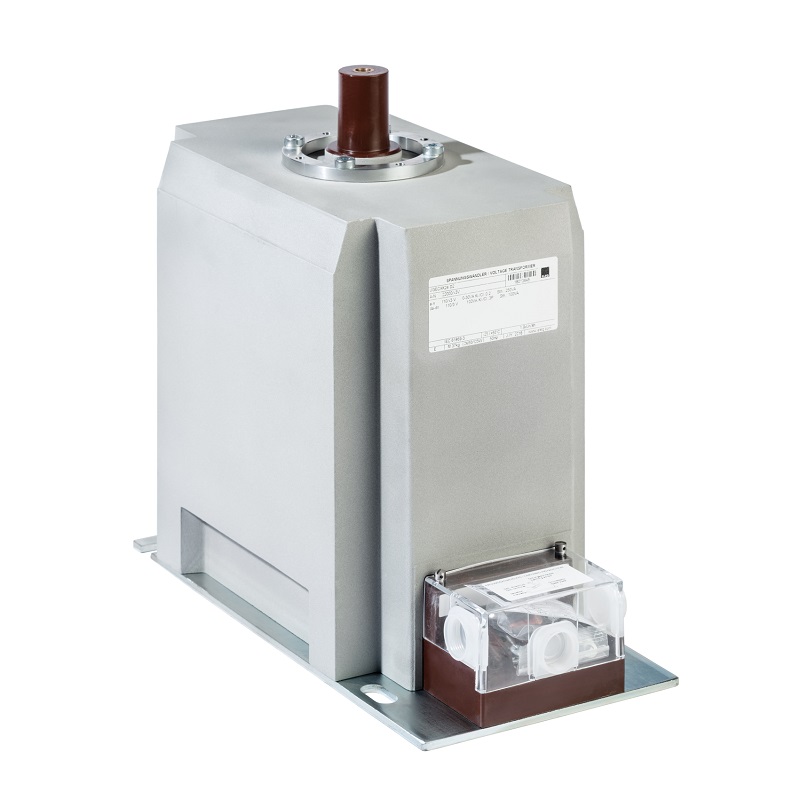

Medium Voltage Insulated Voltage Transformer

UGECAK D2

The UGECAK is a medium voltage insulated voltage transformer with screening against electric fields which enables mounting with no phase distance. This product is cast resin insulated and touch-proved.
22 / √3 kV
100 / √3 V or 110 / √3 V, other options available on request
As required. For example 2,5, 5, 10, 15, 30VA
Ask an offer now
“We are the international manufacturer of measuring, revenue metering and protection transformers for energy generation, energy transport and distribution, energy accounting and energy management. Please contact me for the best solution for you.”
Wim van Turennout, Key Account Manager
+31 (0)6 2039 5494
[email protected]
Order specifications
Rated output Ratio Winding 1 Winding 2 Range Article number
As required. For example 2,5, 5, 10, 15, 30VA 10.000:√3 / 100:√3 / 100:3 0-30VA cl 0.2 100VA 3P 12kV 6V2100
As required. For example 2,5, 5, 10, 15, 30VA 11.000:√3 / 110:√3 / 100:3 0-30VA cl 0.2 100VA 3P 12kV 6V2110
As required. For example 2,5, 5, 10, 15, 30VA 20.000:√3 / 100:√3 / 100:3 0-30VA cl 0.2 100VA 3P 24kV 6V4100
As required. For example 2,5, 5, 10, 15, 30VA 22.000:√3 / 110:√3 / 100:3 0-30VA cl 0.2 100VA 3P 24kV 6V4110
As required. For example 2,5, 5, 10, 15, 30VA 10.000-20.000:√3 / 100:√3 / 100:3 0-10VA cl 0.2 50VA 3P 24kV 6V4309
As required. For example 2,5, 5, 10, 15, 30VA 11.000-22.000:√3 / 110:√3 / 110:3 0-10VA cl 0.2 50VA 3P 24kV 6V4319
Order specifications
For the customized design of your ELEQ voltage transformer the following information is required: Mandatory • Rated primary voltage • Rated secondary voltage • Rated output • Accuracy class • Frequency Optional • Other relevant requirements
General Technical Specifications
This product is designed to be safe under the following conditions:
Environmental conditions
Switchgear
100 / √3 V or 110 / √3 V, other options available on request
500VA Measuring winding 100VA Auxiliary winding
Application conditions
IEC61869-3, VDE 0414
1,9 x Un for 8 h, 1,2 x Un continuous
Up to 24/50/125kV
As required. For example 50-60Hz
E
22 / 3 kV
As required. For example 2,5, 5, 10, 15, 30VA
As required. For example 0,2, 3P
Protected with a sealable cover, degree of protection IP 20
Downloads
The following downloads are available for this product.
Product sheet UGECAK D2 (pdf)
