AC
Meters for AC Voltage or Current with Moving Iron

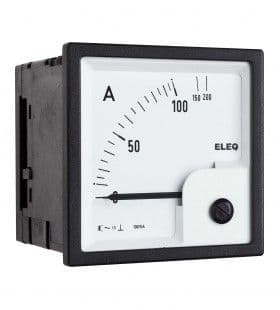

EIV..-E

E-line meters with a moving iron are intended for measurement of AC currents or voltages with frequencies from 15 Hz to 100 Hz.

1 .. 2500A, 250 .. 500V
5A, 1A
1.5
Ask an offer now
“We manufacture products with passion and precision which proved their excellence over the years. I would be pleased to discuss our possibilities together.“
Aafje Heinhuis, Inside Sales
+31 (0)521 533 333
Order specifications
Please consult the download below for our standard items. For the customized design of your ELEQ EIV Analogue Measuring Instrument the following information is required: Mandatory Scale Measuring range Ratio of current transformer Window size (48*48, 72*72, 96*96) Optional Ship version IP55 Extra markings on the scale. All meters are standard delivered with two times overload scale (2vo). Please let us know when you require another overload scale. Other relevant requirements
General Technical Specifications
This product is designed to be safe under the following conditions:
Indoor use
+18°C .. +28°C
-25°C .. +55°C
5% .. 80%, non condensing
Case IP52, terminal contacts IP20**
CAT. III 600V
IEC 60051-2
15 .. 100Hz
0,3 .. 1,2 VA
1,5 .. 4 VA
1.5
* ** IP20 when included protection cover is mounted.
Downloads
The following downloads are available for this product.
