DC
Meters for DC Voltage or Current with Moving Coil

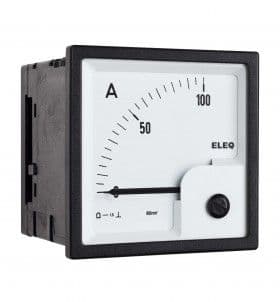

DIV..-E

E-line meters with a moving coil are intended for direct measurement or for connection to a separate shunt.

0 .. 600A, 0 .. 400V
1 .. 600A, 60mV, 0-20mA, 4-20mA, 10V
1.5
Ask an offer now
“We manufacture products with passion and precision which proved their excellence over the years. I would be pleased to discuss our possibilities together.“
Aafje Heinhuis, Inside Sales
+31 (0)521 533 333
Order specifications
Please consult the download below for our standard items. For the customized design of your ELEQ DIV Analogue Measuring Instrument the following information is required: Mandatory Scale Measuring Range Window size (48*48, 72*72, 96*96) Optional Ship version IP55 Extra markings on the scale Other relevant requirements
General Technical Specifications
This product is designed to be safe under the following conditions:
Indoor use
+18°C .. +28°C
-25°C .. +55°C
5% .. 80%, non condensing
Case IP52, terminal contacts IP20**
CAT. III 300V
IEC 60051-2
1.5
* ** IP20 when included protection cover is mounted.
