ø 100

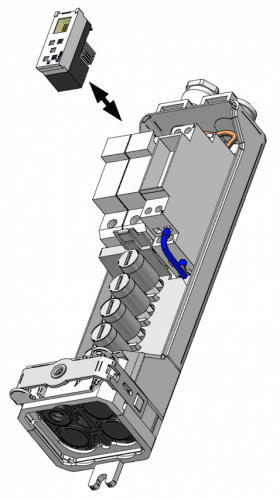

Connection Box
LS-100 5L8028
Connection box for deviating switching regimes for double-insulated grids.
Connection box for deviating switching regimes for double-insulated grids.
x
2 cables (5 x 16mm2)
Double insulated
“We are the market standard for connection techniques for public lighting, concerning protection, switching and dimming. I am available to discuss our possibilities with you.”
Vincent Gorte, Account Manager
+31 (0) 521 533 322
General Technical Specifications
This product is designed to be safe under the following conditions:
LS-100
100mm
2
2x 4A
10*38
5 pieces; 3x phase, 1x zero, 1x Earth
2 cables (5 cores x 16mm2)
5
No
No
Yes
Double insulated
No
Downloads
The following downloads are available for this product.
Complementary goods
The following products complement this products in its use.
-
5L9950These pliers can be used to bend 16 mm2 wires without damage.Connection Box LS-74, LS-84, LS-94, LS-99, LS-100, LS-104, LS-110Bending cores without damaging
-
5L9961To easily open and close stainless steel boxes.All stainless steel boxes with triangle key, LS-100To open and close stainless steel boxes
-
5L9970For the connection between the LS-100 connection box and 2 x 27 mm profile tubeConnection Box LS-100Transition between connection box and profile
-
5L9971For the connection between the LS-100 connection box and the omega profile 23 x 21 (type 1)Connection Box LS-100Transition between connection box and profile
