ø 108
![](https://pimcore-acc.eleq.com/Products/5L8005-h/5L8005-h.png)

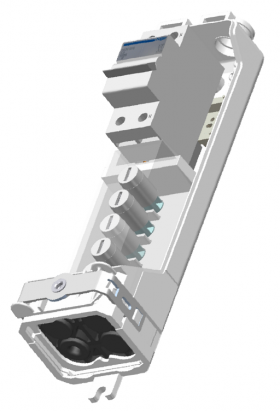

Connection Box
LS-100 5L8005-h
Extra strong connection box suitable for installation in a stainless steel box, in a lamppost and for outdoor installation.
Extra strong connection box suitable for installation in a stainless steel box, in a lamppost and for outdoor installation.
x
2 cables (5 x 16mm2)
Double insulated
![](https://pimcore-acc.eleq.com/WVT%20.jpg)
We never go for the simplest solution, but for the best solution, for you, as a customer. Please contact me for the best solution for you.
Wim van Turennout, Key Account Manager
+31 (0)6 2039 5494
General Technical Specifications
This product is designed to be safe under the following conditions:
LS-100
100mm
/
/
/
5 pieces; 3x phase, 1x zero, 1x Earth
2 cables (5 cores x 16mm2)
5
Yes
No
Yes
Double insulated
No
Downloads
The following downloads are available for this product.
Complementary goods
The following products complement this products in its use.
-
2RVS31Stainless steel box to be mounted on the ground against the wall.1x LS-74, LS-84, LS-94, LS-99, 1x LS-100On the ground against the wallThrough bottom side
-
5L9950These pliers can be used to bend 16 mm2 wires without damage.Connection Box LS-74, LS-84, LS-94, LS-99, LS-100, LS-104, LS-110Bending cores without damaging
-
5L9970For the connection between the LS-100 connection box and 2 x 27 mm profile tubeConnection Box LS-100Transition between connection box and profile
-
5L9971For the connection between the LS-100 connection box and the omega profile 23 x 21 (type 1)Connection Box LS-100Transition between connection box and profile
-
5L9972For the connection between the LS-100 connection box and the omega profile 37x 26 (type 2)Connection Box LS-100Transition between connection box and profile
