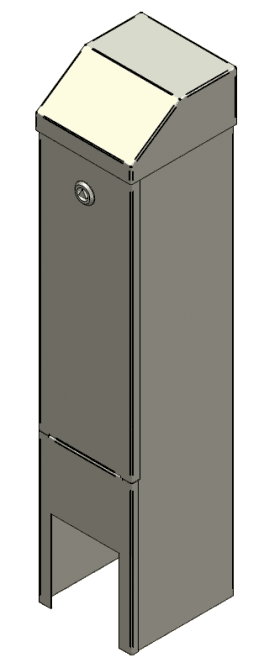

Stainless steel box
2RVS31
Stainless steel box to be mounted on the ground against the wall.
Stainless steel box to be mounted on the ground against the wall.
1x LS-74, LS-84, LS-94, LS-99, 1x LS-100
On the ground against the wall
Through bottom side
“We are the market standard for connection techniques for public lighting, concerning protection, switching and dimming. I am available to discuss our possibilities with you.”
Vincent Gorte, Account Manager
+31 (0) 521 533 322
General Technical Specifications
This product is designed to be safe under the following conditions:
140 x 155 x 670mm
4 holes in rear, ø 6mm
RVS AISI 304 1,25mm
Stainless steel triangle lock
C-profile with sliding rails
RAL 7032
All Ral-colours possible
Through bottom side
Complementary goods
The following products complement this products in its use.
-
LS-99 5L0409-6AConnection box with which the phases to be used can easily be reversed using a pin.2 x E27/DII2 cables (5 x 16 mm2)Phase selectable
-
LS-94 5L2303The market standard in the Netherlands for connecting public lighting.2 x E27/DII2 cables (5 x 10 mm2) or 3 cables (5 x 6mm2)Dutch market standard
-
LS-94 5L2401Connection box with a single fuse for connecting public lighting armatures.1 x E27/DII2 cables (5 x 10 mm2) or 3 cables (5 x 6mm2)Basic connection box
-
LS-100 5L8001Extra strong connection box suitable for installation in a stainless steel box, in a lamppost and for outdoor installation.3 x 10*382 cables (5 x 16mm2)IP55
-
5L9961To easily open and close stainless steel boxes.All stainless steel boxes with triangle key, LS-100To open and close stainless steel boxes
