Split-core Current Transformer (TQ)
- Ideal for load balancing in combination with charging stations and kWh meters;
- Compact and easy to install;
- Developed and produced in-house in The Netherlands;
- Ideal for new and retrofit solutions.
![Brochure Image Brochure Image](https://www.eleq.com/wp-content/uploads/2021/09/EML-EN.png)
The ELEQ Split-core Current Transformer (TQ) serie is a line of compact split-core current transformers for cables. Those easy to install split-core current transformers are ideal for indirect load balancing. The transformers are split-core which makes them very suitable for retrofit situations.
Characteristics
• Compact and split-core;
• Suitable for insulated conductor;
• Meet the requirements of the IEC61869-2;
• Colour-coded leads simplifying installation;
• TQ50 top-part can be removed entirely.

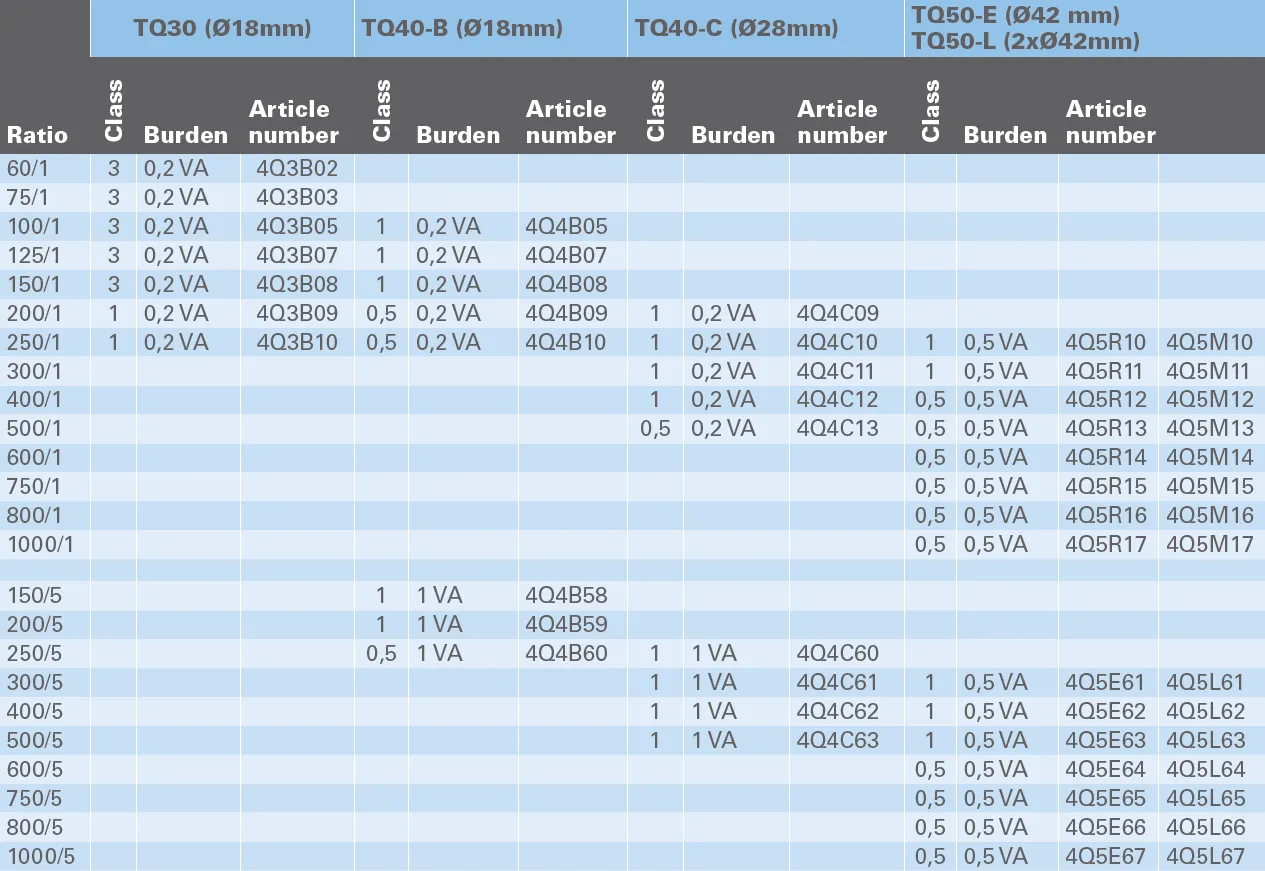

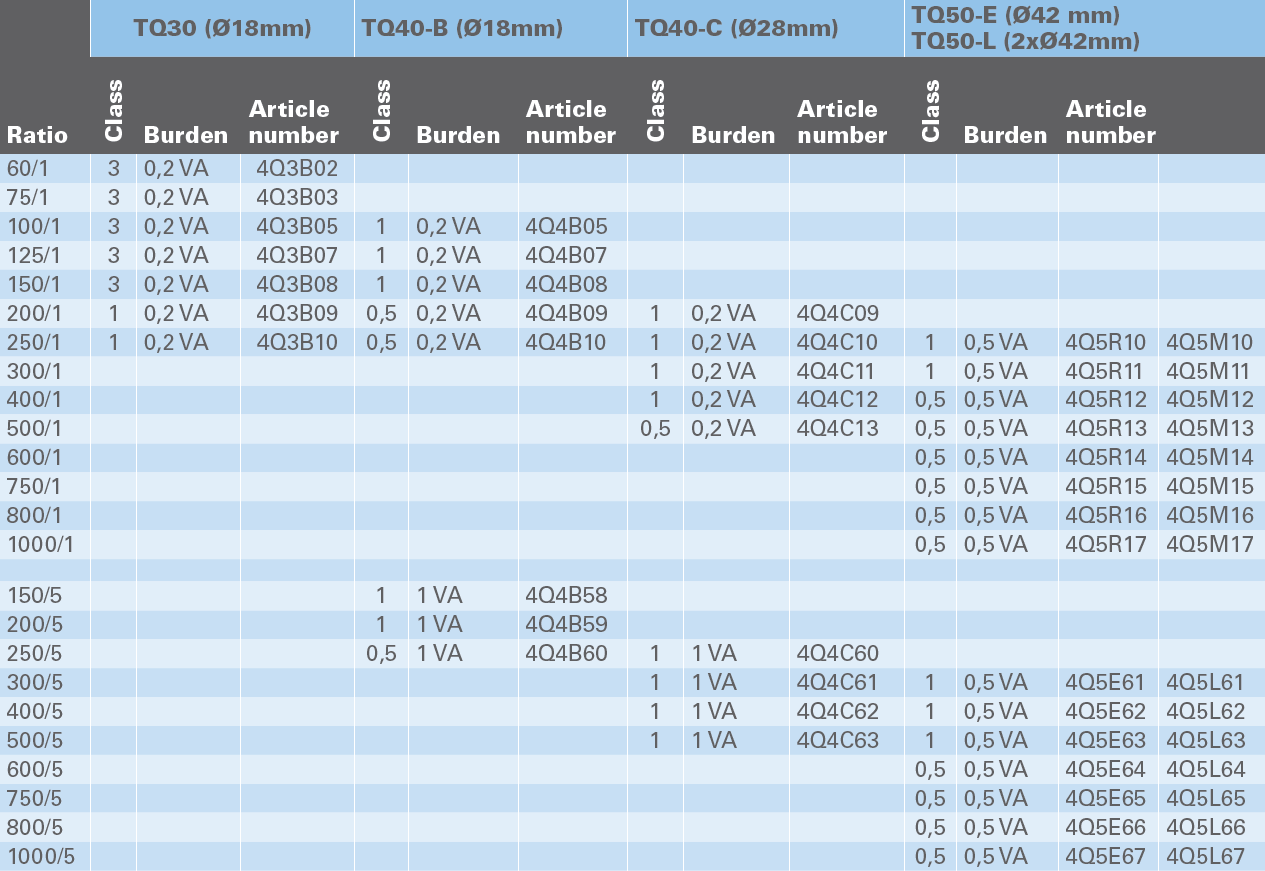

Order specifications
![](https://www.eleq.com/wp-content/uploads/2021/09/EML-EN-1.png)
Please contact us for the best solution
